A complete boxed race set is the best way to get started in HO Slot Car Racing. A boxed set includes track, cars, power packs and hand controls. Everything needed to start racing. Just open the box, assemble the track, plug in the power pack and the hand controls and you're ready to start racing!

Tomy offers several boxed sets that are unquestionably the finest available. Tomy track with its self-cleaning track rail joints, wide variety of turn radius sizes and banked turns makes it the track system to own. Any make of HO slot car will run on Tomy track. Adapter tracks are also available to join Tomy track with the older Aurora A/FX Snap-Lock system as well as Tyco/Mattel and Life-Like.

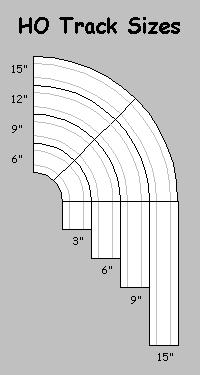

All HO slot car track is manufactured in 2-lane sections. To build wider 4-, 6- and 8-lane tracks multiple 2-lane sections are simply placed side-by-side. The diagram below illustrates how 2-lane track sections can be combined to build larger raceways.

Regardless of the type or brand of HO slot cars you plan to race, the Tomy Track System is the way to go when it comes to building your raceway.

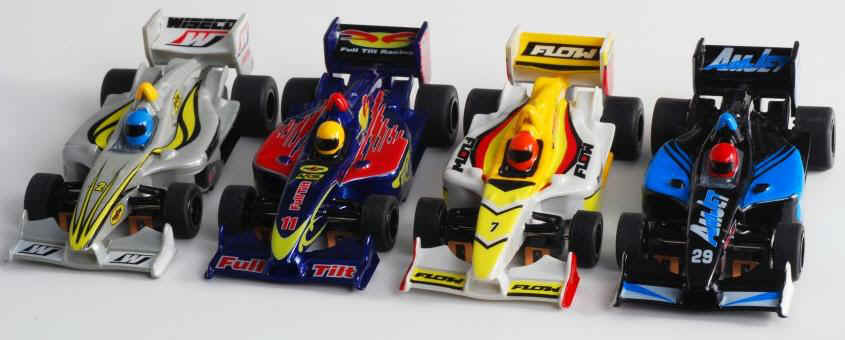

The Tomy AFX 4-Lane Super International is the best set you can buy. It offers a wide variety of track sections, four (4) fast Tomy AFX Mega-G Plus cars and enough track to build any number of challenging 2- and 4-lane raceways.

The Tomy AFX 4-Lane Super International includes all of the track required to build 4-lane examples of 18 popular Formula 1 circuits.

The Layout Sheet included with the set includes instructions for building each of the Formula 1 tracks. You can of course, design your own raceway as well.

An inventory of what is included in the Tomy Super International Race Set is shown below.

Straight Track

(12) - 15" Straights

(2) - 9" Straights

(8) - 6" Straights

(6) - 3" Straights

Curve Track

(1) - 15" Radius 1/8 Circle Turn

(6) - 12" Radius 1/8 Circle Turns

(12) - 9" Radius 1/4 Circle Turns

(9) - 9" Radius 1/8 Circle Turns

(28) - 6" Radius 1/8 Circle Turns

Power

(2) - 15" Power Terminal Tracks

(2) - 1 Amp Tri-Power Packs

(4) - Hand Controls

Cars

(4) - Tomy AFX Mega-G Plus F1/IndyCars

Accessories

(20) - 15" Guard Rails

(6) - Bridge Supports w/ Piers

(1) - Set of Color Lane Markers

This is the best value you'll find. You get over $350 worth of cars, track and accessories in just this one set!

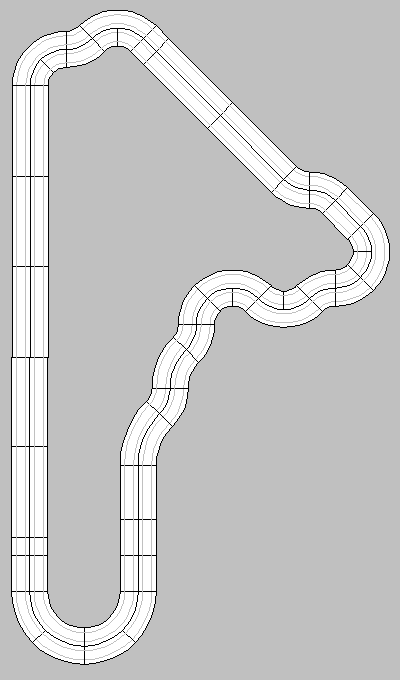

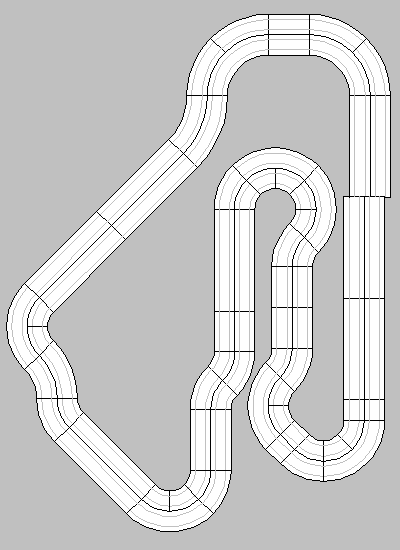

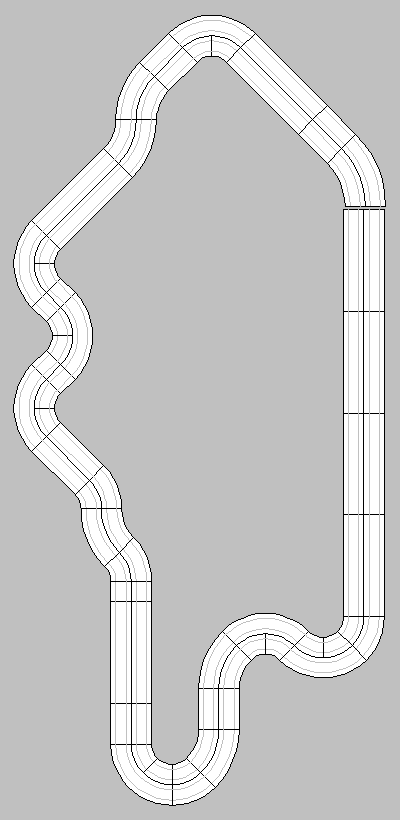

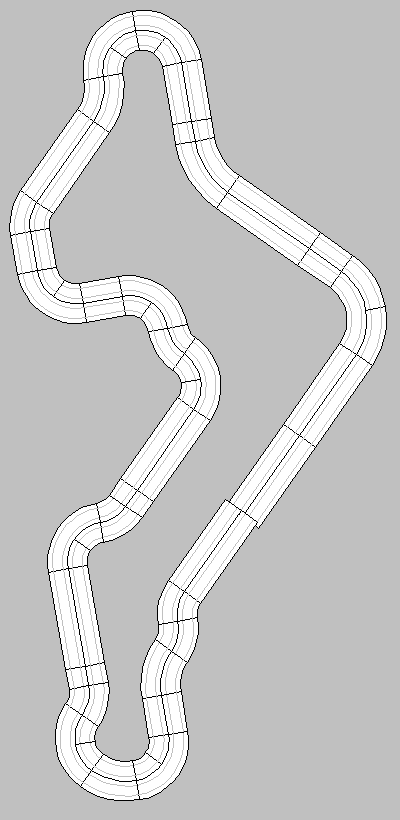

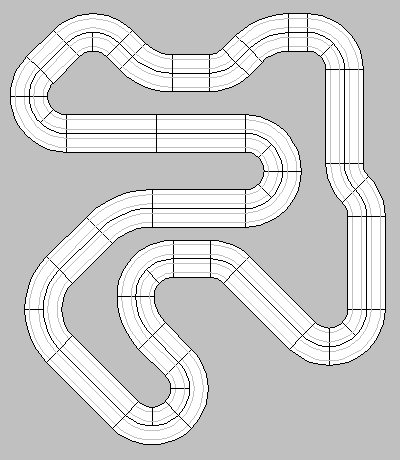

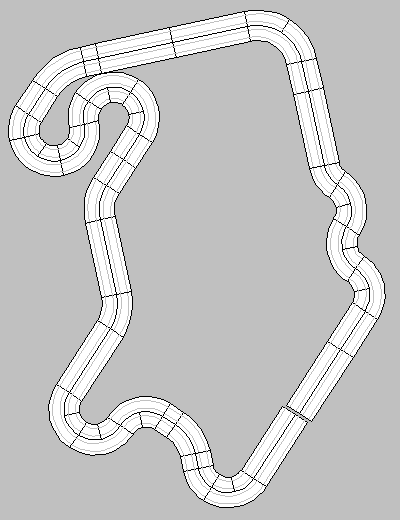

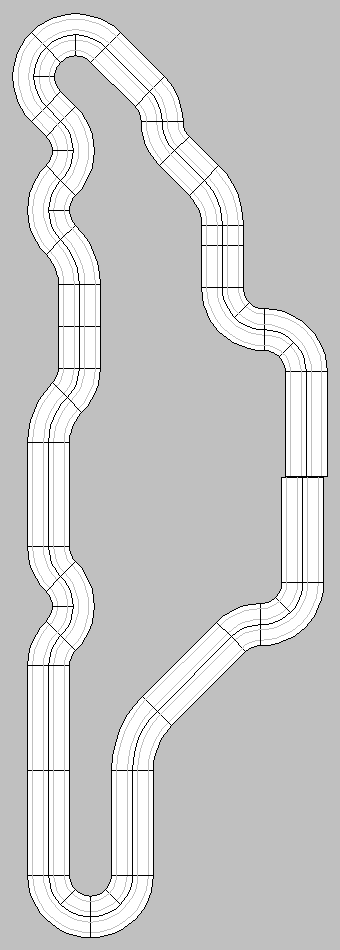

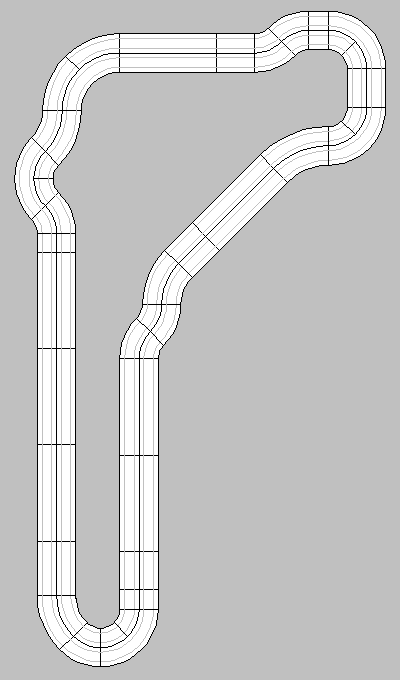

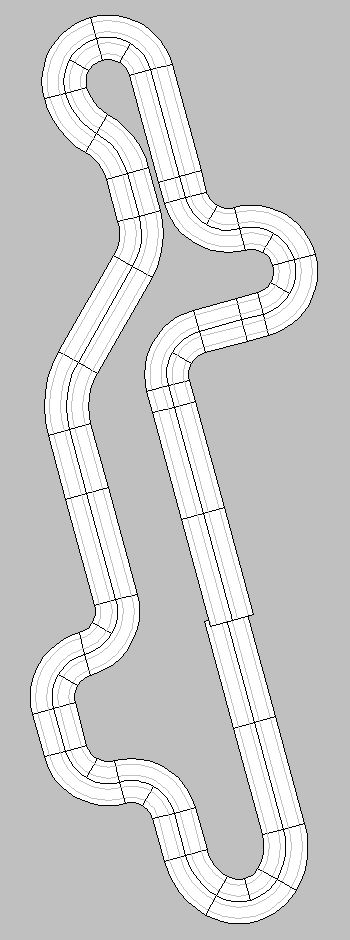

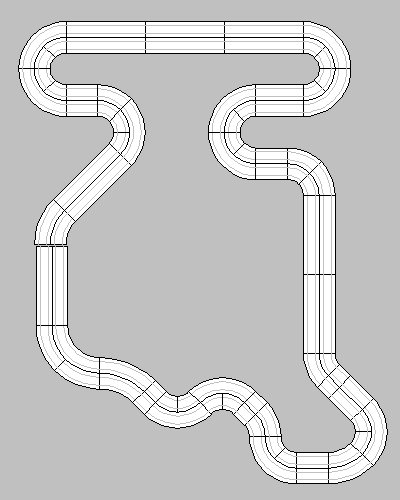

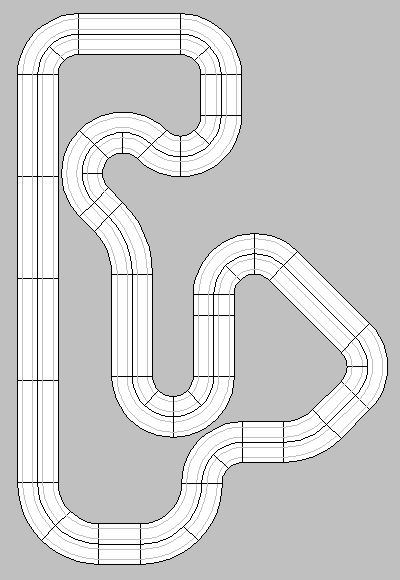

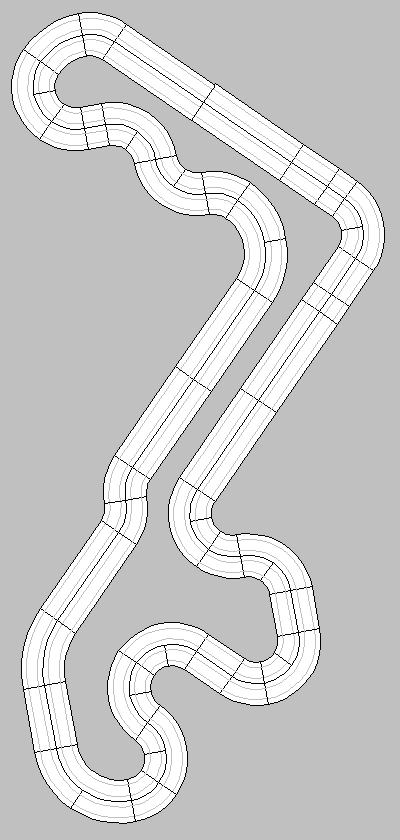

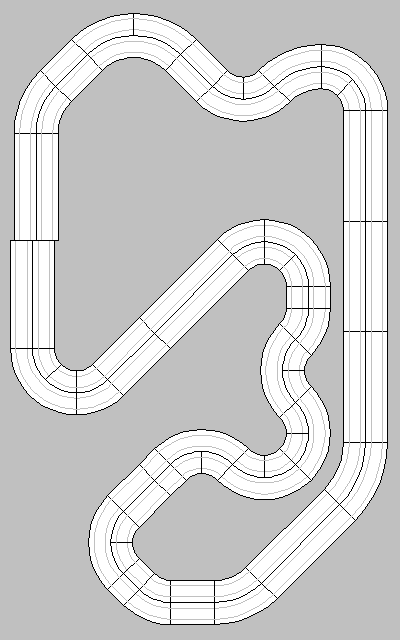

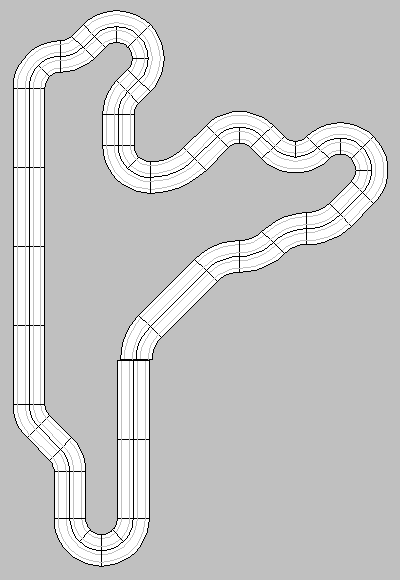

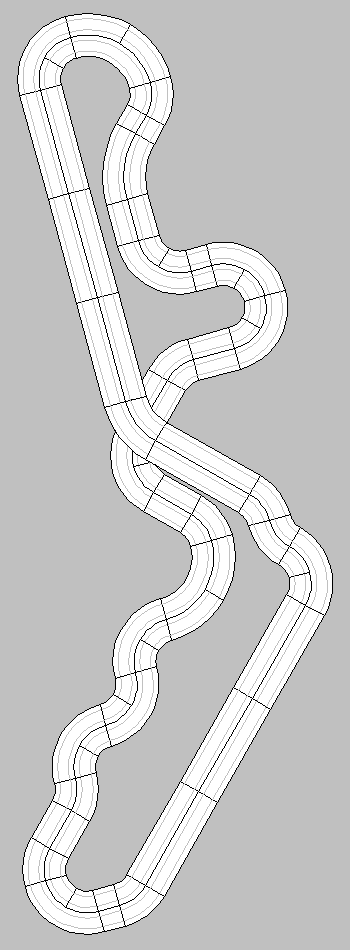

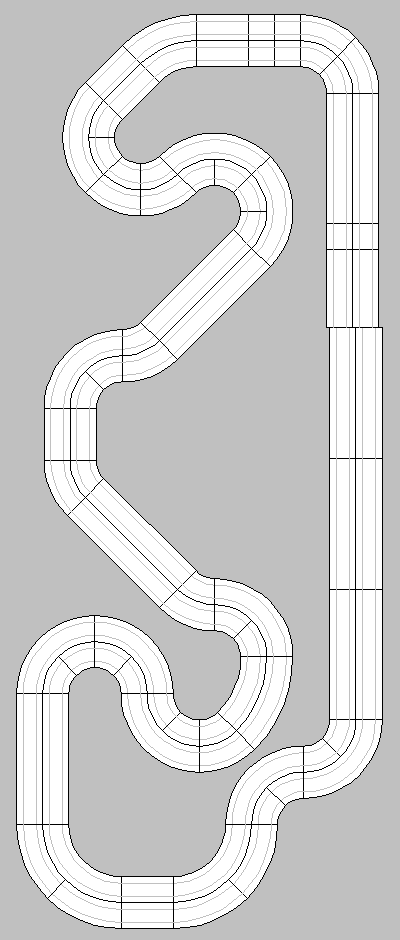

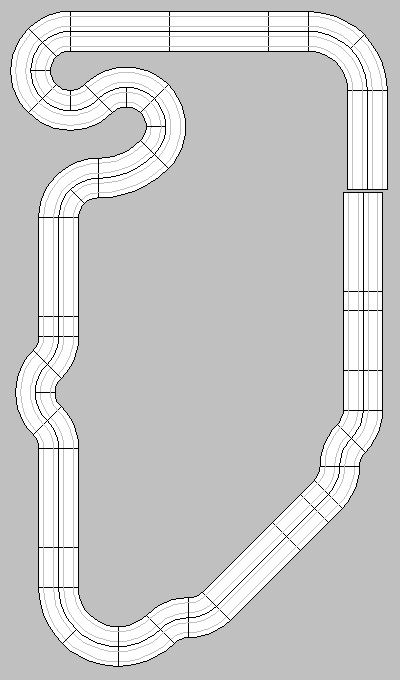

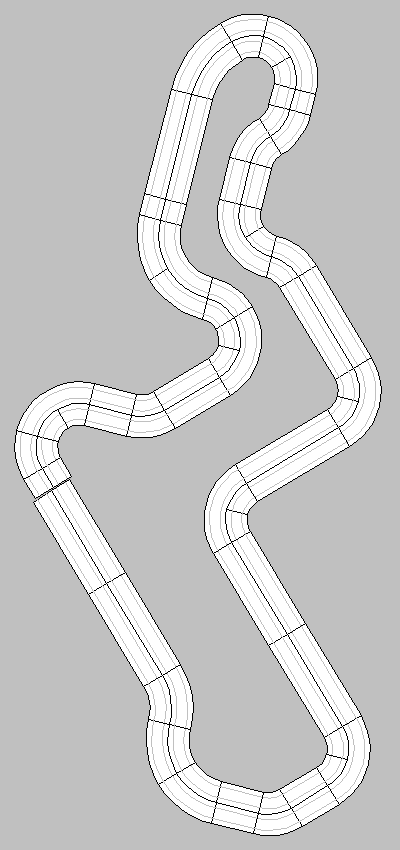

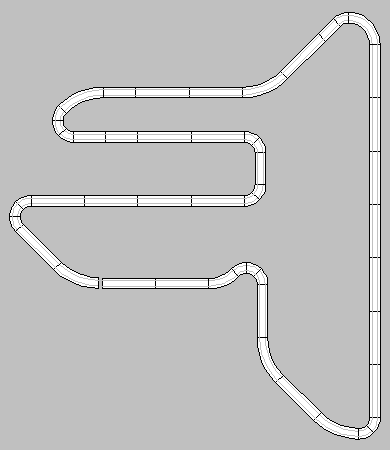

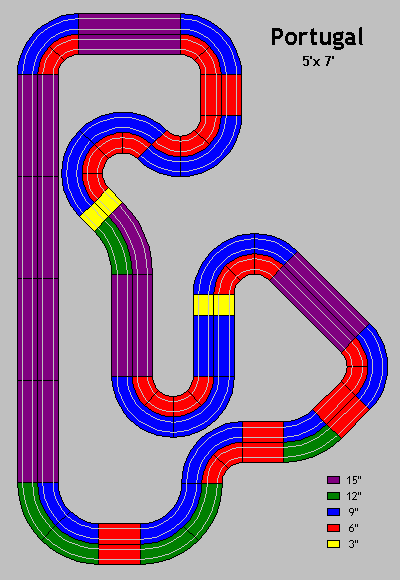

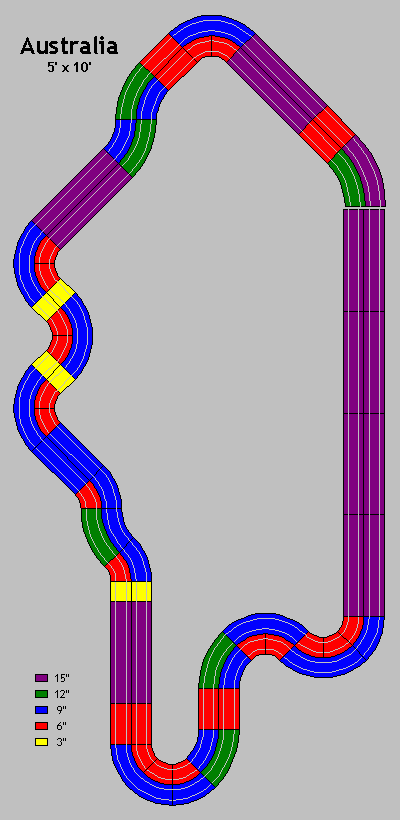

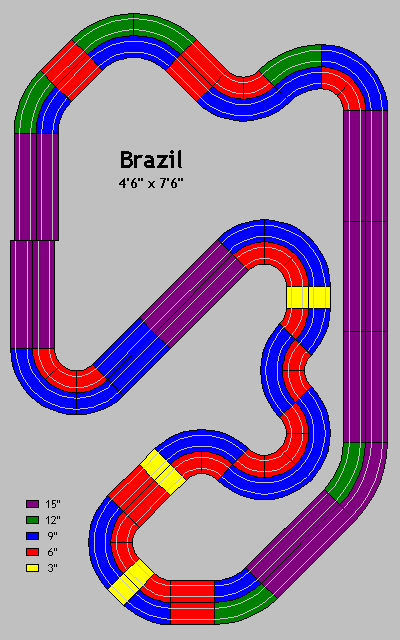

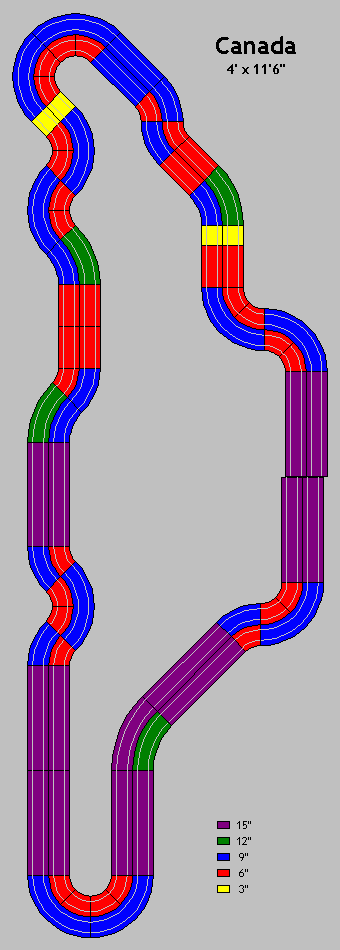

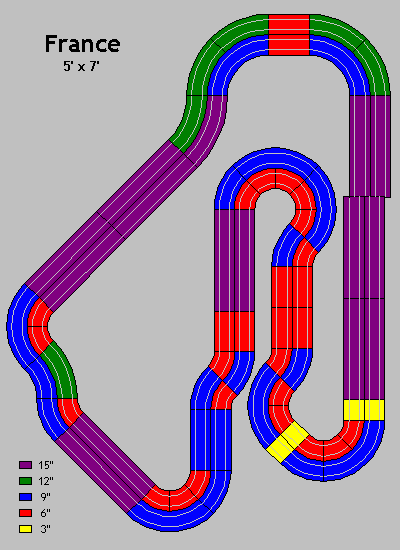

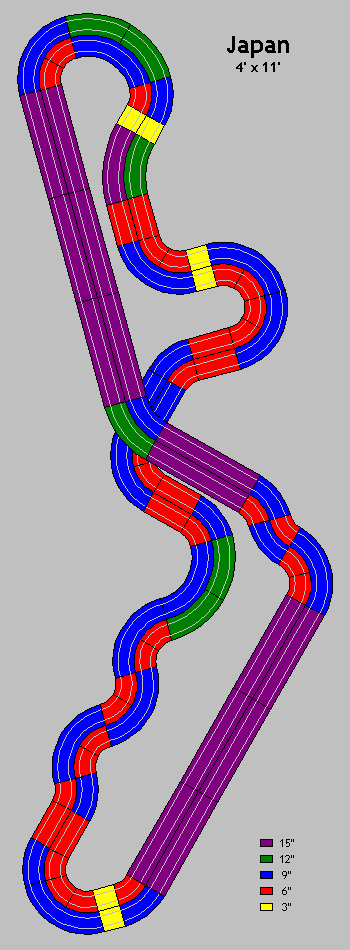

All of the race tracks show below can be built using just the track included in the Tomy 4-Lane Super International Race Set.

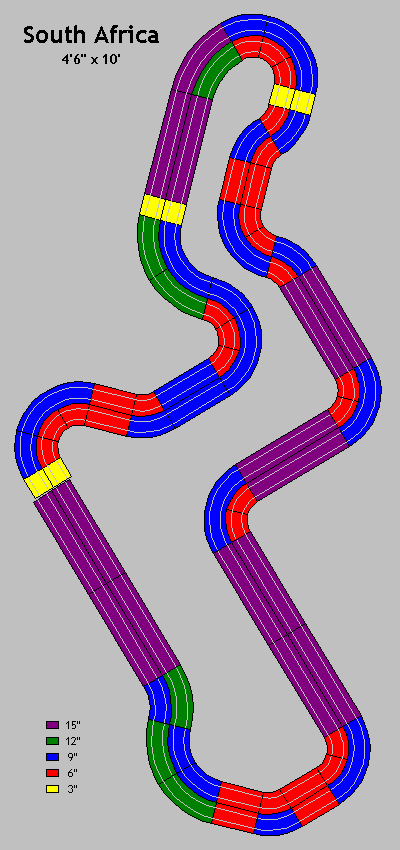

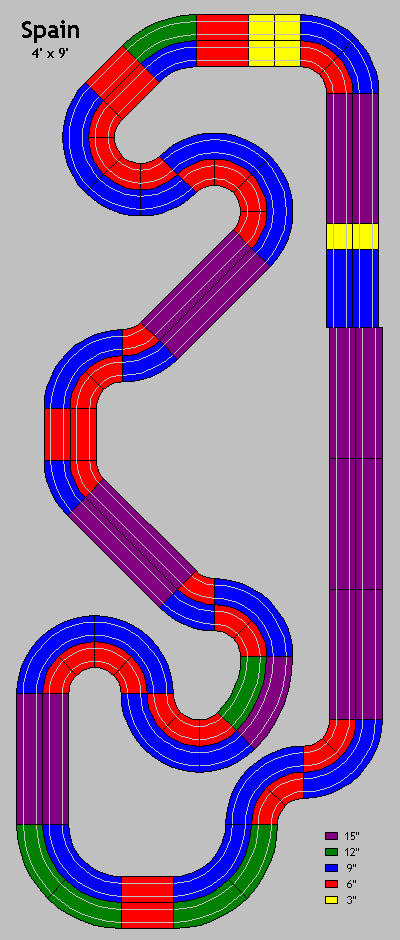

These are the same tracks included on the Layout Sheet that comes with the set. I've included them here so that they are easier to read. Click your mouse on the Color Coded link below each track diagram to see how the track sections are assembled to build each layout.

View the Color-Coded layout plan for track dimensions and section sizes.

View the Color-Coded layout plan for track dimensions and section sizes.

View the Color-Coded layout plan for track dimensions and section sizes.

View the Color-Coded layout plan for track dimensions and section sizes.

View the Color-Coded layout plan for track dimensions and section sizes.

View the Color-Coded layout plan for track dimensions and section sizes.

View the Color-Coded layout plan for track dimensions and section sizes.

View the Color-Coded layout plan for track dimensions and section sizes.

View the Color-Coded layout plan for track dimensions and section sizes.

View the Color-Coded layout plan for track dimensions and section sizes.

View the Color-Coded layout plan for track dimensions and section sizes.

View the Color-Coded layout plan for track dimensions and section sizes.

View the Color-Coded layout plan for track dimensions and section sizes.

View the Color-Coded layout plan for track dimensions and section sizes.

View the Color-Coded layout plan for track dimensions and section sizes.

View the Color-Coded layout plan for track dimensions and section sizes.

View the Color-Coded layout plan for track dimensions and section sizes.

View the Color-Coded layout plan for track dimensions and section sizes.

The Tomy AFX 2-Lane 24 Hour Champions Set is a large 35 foot race set that fits on a standard 4x8 foot sheet of plywood.

This set comes with Two (2) Mega-G slot cars from Tomy's LeMans Prototype Series. The Audi R10 and Peugeot 908 factory prototypes are the fastest cars Tomy offers.

Collectors Note: The Audi R10 Race No. 2 and Peugeot 908 Race No. 9 are unique to this set. These two race numbers are not available separately as RTR slot cars in blister packs.

An inventory of what is included in the Tomy AFX 2-Lane Super Coupes Set is shown below.

Straight Track

(6) - 15" Straight Tracks

(3) - 9" Squeeze Tracks

Curve Track

(20) - 12" Radius 1/8 Circle Turns

(6) - 18" Radius 1/8 Circle Turns

Power

(1) - 15" Power Terminal Track

(1) - 1 Amp Tri-Power Pack

(2) - Hand Controls

Cars

(2) - Tomy AFX Mega-G LMP Slot Cars

Accessories

(1) - 15" Lap Counter

(21) - 15" Guard Rails

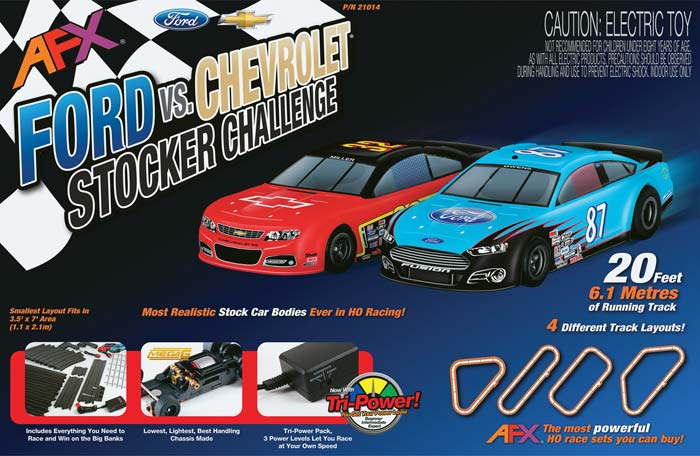

Tomy has released a new 2-lane NASCAR race set just in time for the holidays. The set includes 20 feet of track. Enough to build any of four NASCAR ovals and tri-ovals.

Two new Ford and Chevy NASCAR stock cars are included. The Ford Fusion and Chevy SS are only available in this set, making them and this set something of a "collectable."

All of the set's corners are 12" radius Daytona banked turns. You can build any of four famous NASCAR speedways with this race set.

The Tomy AFX 4-Way Split is also a 4-lane race set, but this set includes four (4) Tomy AFX Super G+Plus GTP cars instead of the open-wheeled cars found in the Super set above.

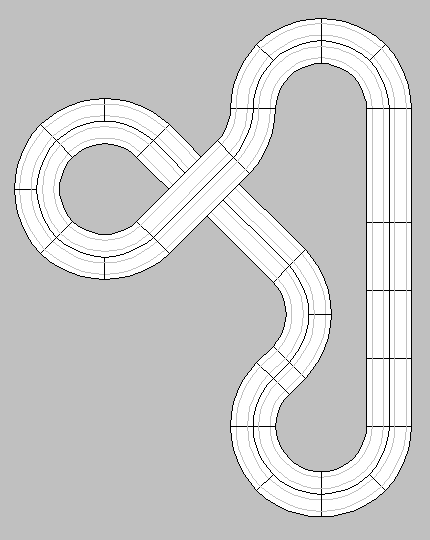

The set includes enough track to create the 17.5 foot track shown below.

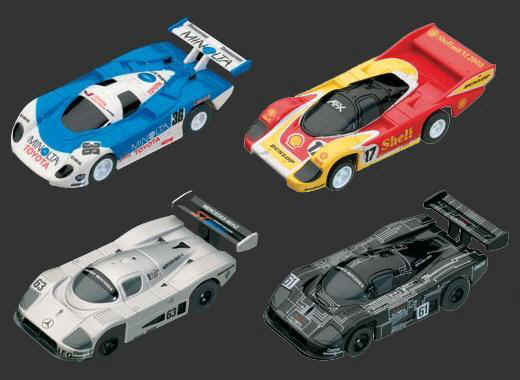

Four gorgeous GT Prototype race cars; a pair of Mercedes C-9 Silver Arrows along with a Porsche 956/962C and Toyota CV-88 are included in this set. The Porsche in Shell Livery and the Blue Toyota CV-88 are re-releases of cars long out of production.

An inventory of what is included in the Tomy AFX 4-Way Split Race Set is shown below.

Straight Track

(2) - 15" Straights

(8) - 9" Straights

(2) - 3" Straights

Curve Track

(18) - 12" Radius 1/8 Circle Turns

(8) - 9" Radius 1/4 Circle Turns

(2) - 9" Radius 1/8 Circle Turns

Power

(2) - 15" Power Terminal Tracks

(2) - 22 VDC Power Packs

(4) - Hand Controls

Cars

(4) - Tomy Super G+Plus GTP Le Mans Cars

Accessories

(2) - 15" Lap Counters

(8) - 15" Guard Rails

(1) - Cardboard Grandstand

(1) - Cardboard Pit Building

View the Color-Coded layout plan for track dimensions and section sizes.

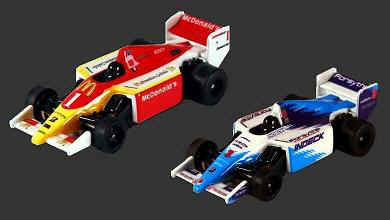

The Tomy AFX 2-Lane Long Beach Grand Prix is Tomy's newest race set. It offers a good variety of track sections, including the new 18" Radius turns. Two (2) fast Tomy Super G+Plus Champ Cars as driven by Paul Tracy and Sebastian Bourdais and enough track to build any number of challenging 50 Foot 2-lane raceways.

The Tomy AFX 2-Lane Long Beach GP Set includes all of the track required to build 2-lane examples of 8 of the most popular Champ Car circuits currently on the calendar.

The Layout Sheet included with the set includes instructions for building each of the eight (8) Champ Car tracks shown on the box cover. You can of course, design your own raceway as well.

An inventory of what is included in the Tomy Long Beach GP Race Set is shown below.

Straight Track

(23) - 15" Straights

(6) - 9" Straights

(1) - 6" Straight

(1) - 3" Straight

Curve Track

(5) - 18" Radius 1/8 Circle Turns

(2) - 12" Radius 1/8 Circle Turns

(1) - 9" Radius 1/4 Circle Turn

(24) - 6" Radius 1/8 Circle Turns

Power

(1) - 15" Power Terminal Track

(1) - 22 VDC Power Pack

(2) - Hand Controls

Cars

(2) - Tomy Super G+Plus Champ Cars

Accessories

(1) - 15" Lap Counter

(20) - 15" Guard Rails

(1) - Cardboard Grandstand

(1) - Cardboard Pit Building

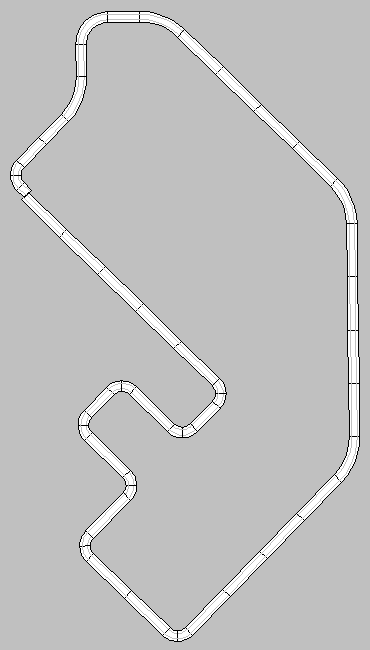

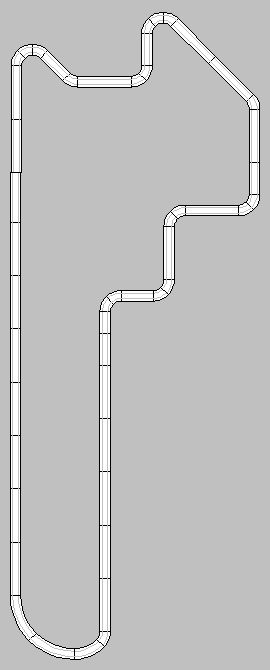

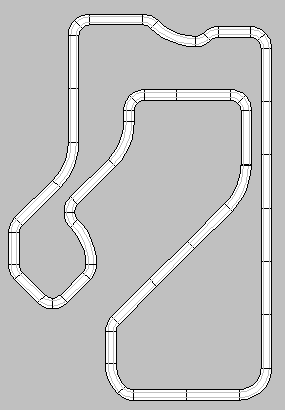

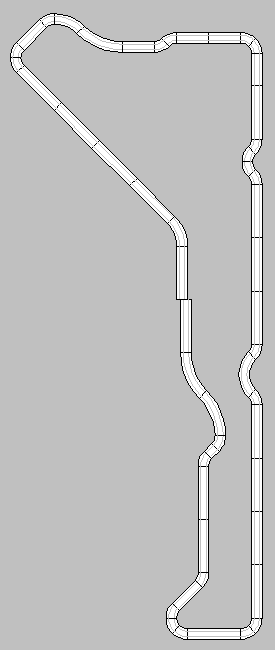

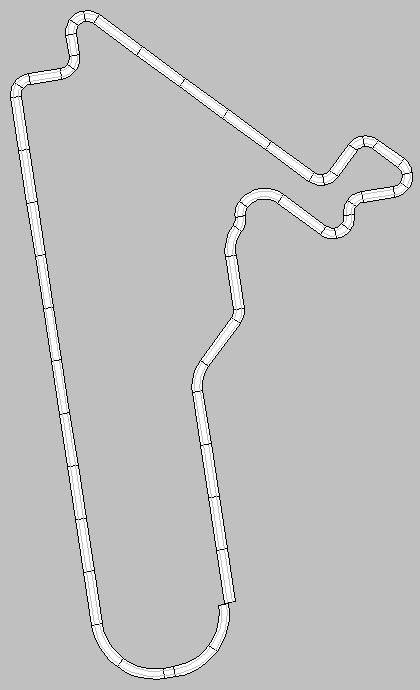

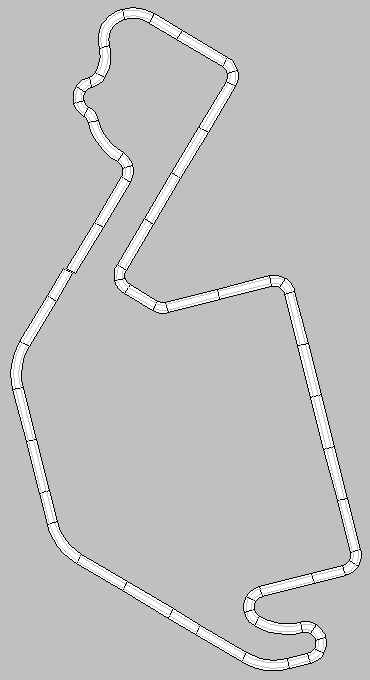

All of the race tracks show below can be built using just the track included in the Tomy Long Beach Grand Prix Race Set.

These are the same tracks included on the Layout Sheet that comes with the set. I've included them here so that they are easier to read. Click your mouse on the Color Coded link below each track diagram to see how the track sections are assembled to build each layout.

View the Color-Coded layout plan for track dimensions and section sizes.

View the Color-Coded layout plan for track dimensions and section sizes.

View the Color-Coded layout plan for track dimensions and section sizes.

View the Color-Coded layout plan for track dimensions and section sizes.

View the Color-Coded layout plan for track dimensions and section sizes.

View the Color-Coded layout plan for track dimensions and section sizes.

View the Color-Coded layout plan for track dimensions and section sizes.

View the Color-Coded layout plan for track dimensions and section sizes.

The Tomy AFX 2-Lane Super Coupes Set is a small entry-level set. It doesn't offer the same kind of value that the Super International set does, but if you're looking for a smaller set this may be the one for you.

The Super Coupes Set includes 12.8 Feet of track in a modified figure of eight layout.

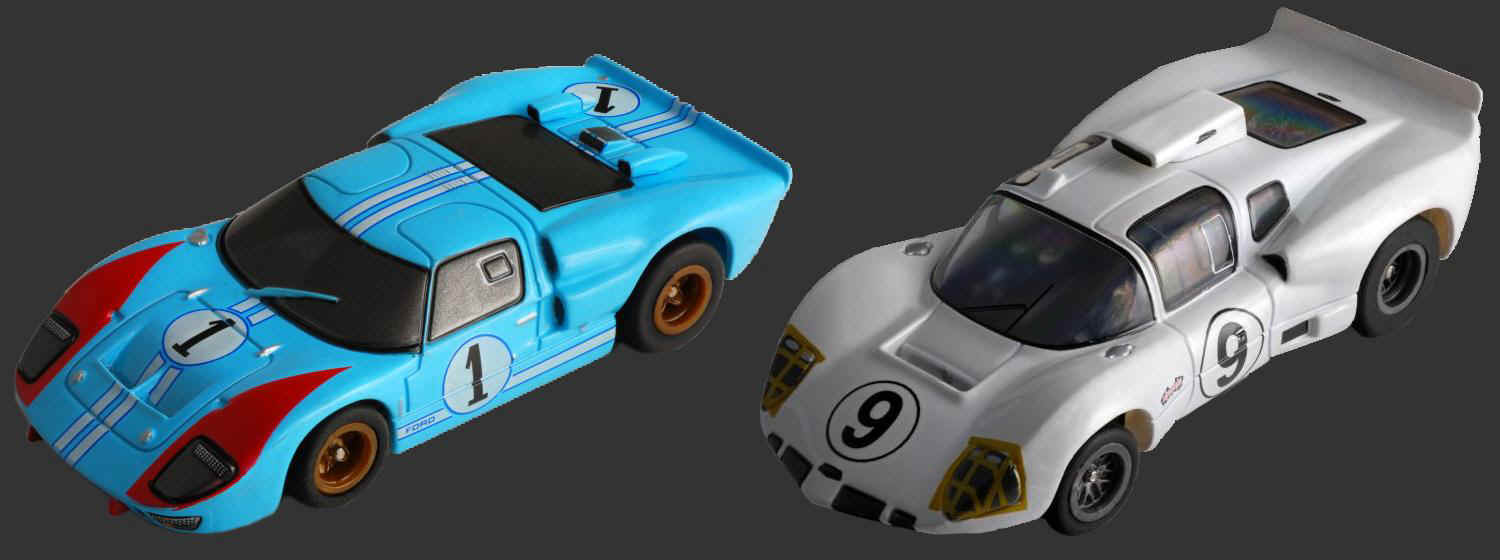

This set comes with Two (2) Mega-G Plus slot cars from Tomy's Collector's Series; the 1966 Le Mans winning Ford GT40 and Jim Hall's Chaparral 2D Coupe.

An inventory of what is included in the Tomy AFX 2-Lane Super Coupes Set is shown below.

Straight Track

(2) - 15" Straights

Curve Track

(8) - 9" Radius 1/4 Circle Turns

Power

(1) - 15" Power Terminal Track

(1) - 1 Amp Tri-Power Pack

(2) - Hand Controls

Cars

(2) - Tomy Mega-G Plus GT40 & Chaparral

Accessories

(1) - 15" Lap Counter

(8) - 15" Guard Rails

(1) - Cardboard Grandstand

(1) - Cardboard Pit Building

View the Color-Coded layout plan for track dimensions and section sizes.

The Tomy AFX 2-Lane Infinity Set is another small entry-level set. It includes two (2) Tomy AFX Turbo IndyCars.

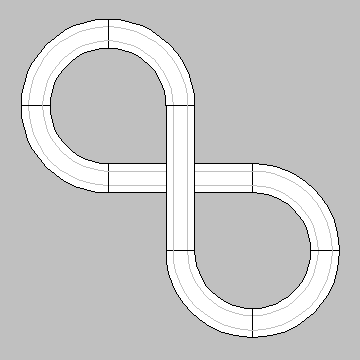

The Infinity Set includes 8.4 Feet of track in a very simple figure of eight layout.

This set comes with Two (2) Turbo IndyCar slot cars.

An inventory of what is included in the Tomy AFX 2-Lane Infinity Race Set is shown below.

Straight Track

(1) - 15" Straight

Curve Track

(6) - 9" Radius 1/4 Circle Turns

Power

(1) - 15" Power Terminal Track

(1) - 1 Amp Tri-Power Pack

(2) - Hand Controls

Cars

(2) - Tomy Mega-G Plus IndyCars

Accessories

(6) - 15" Guard Rails

View the Color-Coded layout plan for track dimensions and section sizes.
